Sample offer for heating with the LARX carbon heating Film system

Comparative price quotation family house and apartment building

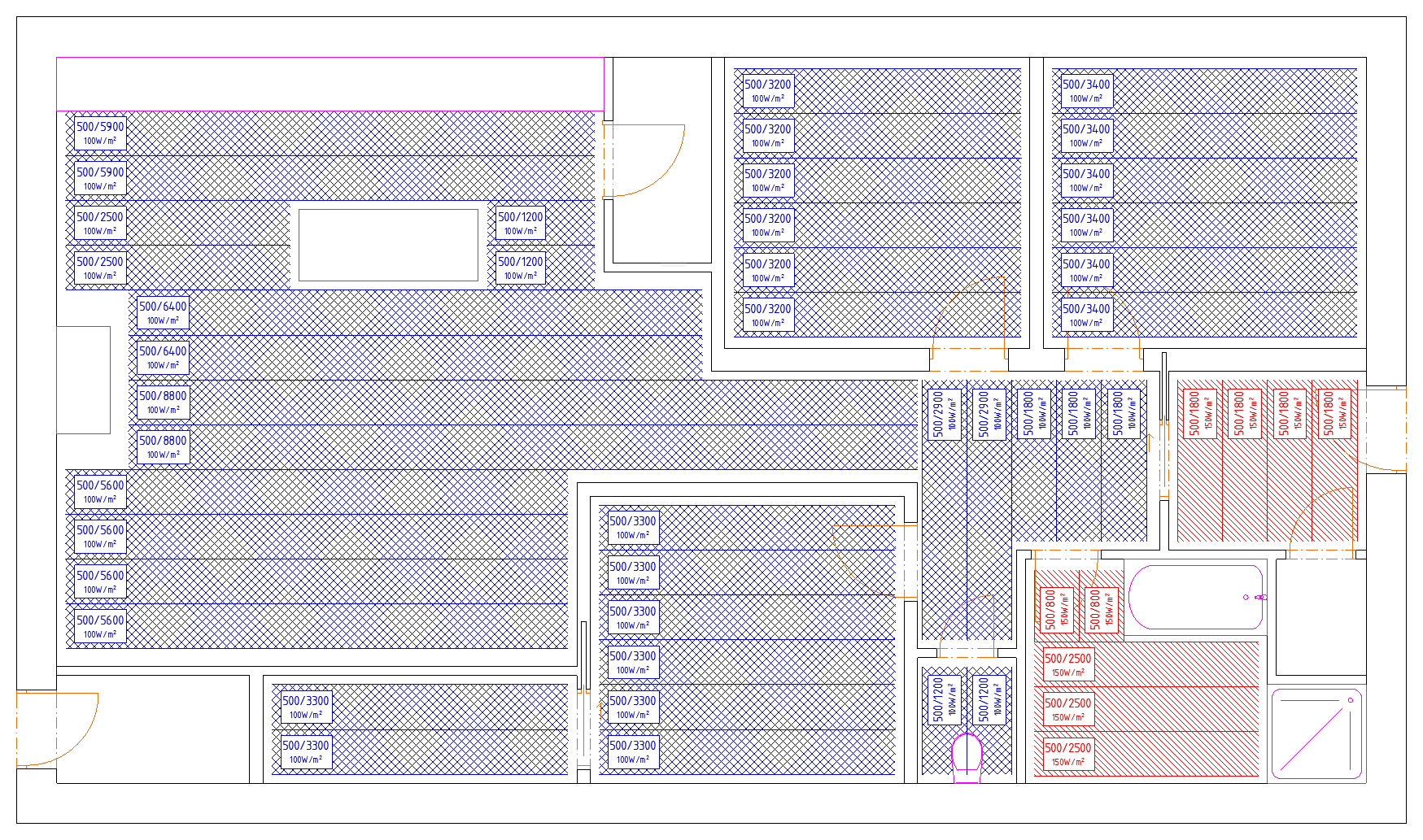

Technical specifications for heating a model family house

Total floor area of the building: 113 m²
Total installed area of Films: 84 m²
Number of controlled heating circuits: 6

1Application directly
under floating flooring

1Any flooring with click system
2PE film 0.2 mm
3LARX CARBON-FILM.COM
4Acoustic insulation

Energy demands

Installed heating capacity: 8.8 kW
Heat loss of the building: 5.7 kW
Estimated annual operating costs for heating: € 1.386 /year (prices for 2021)

Offer for heating system, including control system

LARX TOUCH thermostat

Simple and comfortable control of Film heating with programmable mode

Heating system, including control system:
€ 2,344 excl. VAT

LARX Wi-Fi thermostat

Wi-Fi connection - simple and effective solution for remote and local control

Supplementary charge for Wi-Fi thermostats:
+ € 300 excl. VAT

Heating of a model family house

Total cost of materials: € 2,344

The price quotation includes all the materials for heating with LARX carbon heating Films.
All listed prices are excl. VAT.

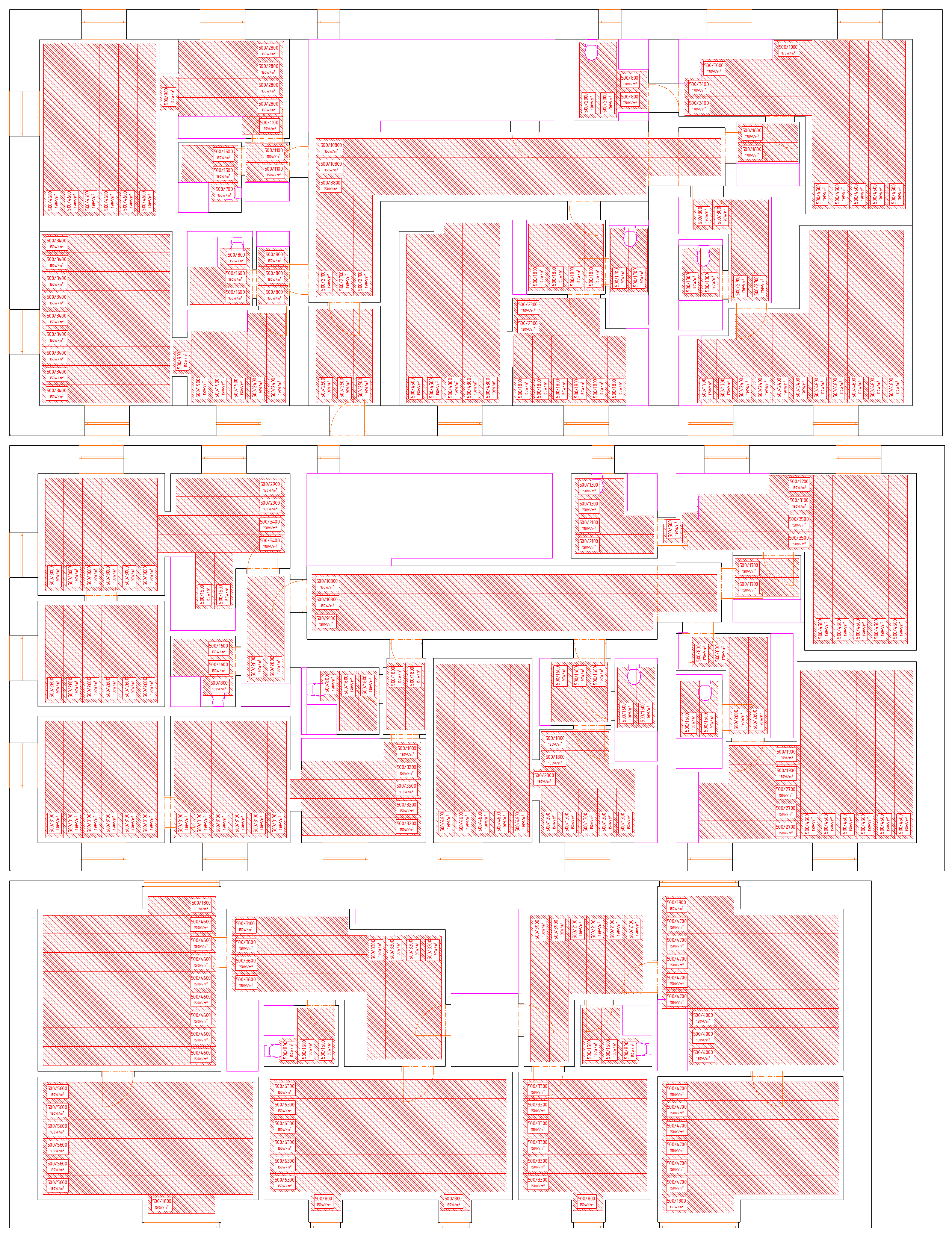

Technical specifications for heating a model family house

Total floor area of the building: 560 m²
Total installed area of Films: 408 m²
Number of controlled heating circuits: 26

2Application
under screed

PE film 0.2 mm and screed separation film

1Any flooring / tiles
2Possible tile glue
3Anhydrite / concrete / floorboards
4PE film 0.2 mm and screed separation film
5LARX resistant carbon film

Energy demands

Installed heating capacity: 61.2 kW
Heat loss of the building: 42.8 kW
Estimated annual operating costs for heating: € 5,040/year (prices for 2021)

Offer for heating system, including control system

LARX TOUCH thermostat

Simple and comfortable control of Film heating with programmable mode

Heating system, including control system:
€ 14,077 excl. VAT

LARX Wi-Fi thermostat

Wi-Fi connection - simple and effective solution for remote and local control

Supplementary charge for Wi-Fi thermostats:
+€ 1,300 excl. VAT

Heating of an apartment building - 7 apartments

Total cost of materials: € 14,077

The price quotation includes all the materials for heating with LARX carbon heating Films.
All listed prices are excl. VAT.

Certification

LARX carbon heating Films are carefully tested

It meets strict Czech and European standards and safety requirements for a healthy indoor environment. It has all necessary certifications for the Czech Republic and other European countries.

Declaration of Conformity

Declaration of the Korean manufacturer on the compliance of LARX carbon heating Film with all standards, including IP protection.
More in our blog post.

LARX CARBON-FILM.COM Certificate for the wire

LARX connecting wires

They meet the strictest Czech and European standards and requirements for safety. The above certification applies for the Czech Republic and other European countries. It is the highest quality cable of its kind due to the increased double insulation and tinned copper.
